Continuous Delivery with Chef

09 March 2017

The journey I had on achieving Continuous Delivery using Chef as the tool for environment management, application configuration management and application deployment have not been easy. Documentations and resources surrounding this topic are quite scarce. I hope this writing will be helpful and do leave comments to other readers if you have found better ways of achieving what I’m trying to do.

Setup

The usage of Chef in this post utilises Chef Server. You will find that most of the commands written in this post are coupled with Chef Server, although you should be able to map it to masterless Chef setup (Chef Zero or Solo) if needed.

You will need a CI/CD server. Some of the terminologies or concepts I use might accidentally be Jenkins specific as that’s the tool that I use. I will try to make explanation I use as agnostic as possible due to the high number of CI/CD server options we have today,

I’m using Berkshelf as the dependency management tool for my chef cookbooks. Adopting it right, you will have one git repository for every cookbooks you have, as opposed to having them all in one repo a.k.a. chef-repo. If you are not familiar with Berkshelf and its cookbook patterns, I would recommend reading this blog post as most of the concepts I use will refer to that blog post. Do note that at the time of writing, Chef is recommending the usage of Policyfile instead of Berkshelf.

Your own written cookbooks (those that aren’t deployed to the public supermarket) will be resolved by Berkshelf via Chef Server. You should have the following statement in all of your Berksfile:

source :chef_server

We will only upload our cookbooks once they have a successful build, hence using Chef Sever as a dependency source will ensure that our upstream cookbook dependencies are stable. If you would like to go fancier, you can also setup your own Chef Supermarket although I will not be covering that.

Deployment Pipeline

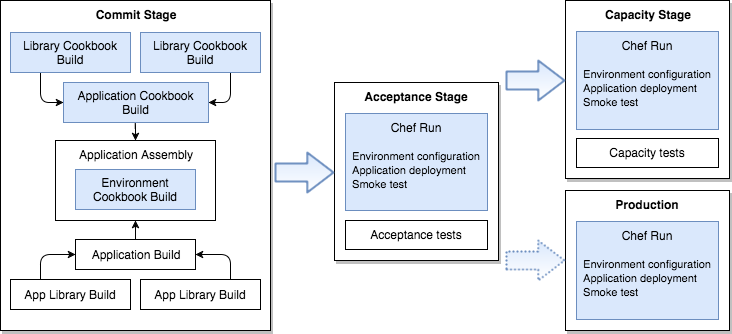

Here is the full example of a deployment pipeline when it is implemented with Chef:

Deployment pipeline

The blue colored shapes are the topics that I will cover in this post. All of the arrows that you see in the diagram are automatic triggers in your CI/CD server, except the arrow with dotted line that points to Production Stage.

Observe the confluence of two build streams in the Commit Stage. Any change that happens on your cookbook must trigger your acceptance test even when there is no change in your application.

Cookbook Build

On every commit made to your git repository, a CI build will kick start a series of build steps. Ideally, you will want to complete these build steps in less than ten minutes. I would recommend putting all of the steps below to a Rakefile and let rake be the tool that define your build steps, especially because we are using various tools here during the build. Using rake will make it easier for developers to run the build steps locally and make sure that they are successful before committing them.

Here are the typical build steps that you should have in sequential order:

Workspace clean up

Don’t delete your entire build workspace as you would want to avoid recloning your repository on every build. It will be very slow. Clean up your workspace before you proceed on any build steps by reverting all of the changes done by the previous build and deleting all of the unversioned files.
Bump cookbook version
```
  export COOKBOOK_NAME=`chef exec ruby -e 'require "chef/cookbook/metadata"; metadata = Chef::Cookbook::Metadata.new; metadata.from_file("metadata.rb"); puts metadata.name'`
  knife spork bump $COOKBOOK_NAME -o ..
  knife spork check $COOKBOOK_NAME -o .. --fail
```
knife spork is used here to bump our cookbook patch version on every build. It is important that you bump your cookbook version before updating the cookbook dependencies (the next step) because the Berksfile.lock will also contain the cookbook version that have just been bumped in this step.
Update cookbook dependencies
```
  rm -f Berksfile.lock
  berks install
```
This step will ensure that you’ll always be integrated with the latest cookbook dependencies based on the version constraints you have declared in metadata.rb. You will need to make sure that Berksfile.lock is deleted before you run berks install command. berks install will not update Berksfile.lock.

You might ask why don’t we just use berks update command in this step. The reason is because this command will require you to have Berksfile.lock to exist in your workspace, which is not necessarily true in a non-environment cookbook build. You can also run berks install then berks update on every build, but this will be a slower process as berks will take twice as much time to resolve your cookbook dependencies.
Lint your cookbook: cookstyle and foodcritic.

Adopt these tools early if you do not want to be buried in thousands of warnings later. These tools will help you find unintended bugs and enforce coding standards. These tools are essential if you do not have ruby background.
Run unit test: chefspec

Speeding up:
- Replace let(:chef_run) with cached(:chef_run). See this section for more details.
- Use ChefSpec::SoloRunner instead of ChefSpec::ServerRunner when possible.
Run integration test: kitchen

Speeding up:
- If the platforms that you support are all supported by docker, check out kitchen-dokken driver.
- If using docker driver, check out squid to cache file downloads.
- If using vagrant driver, check out vagrant-cachier to cache file downloads.
- If your CI tool support matrix job, use them to test multiple platforms or test suites in parallel.

Environment Cookbook Build

Earlier in this post, I mentioned that you’ll have one git repository for every cookbooks you write. There’s an exception for Environment Cookbooks (again, read this blog post if you haven’t read it already to get a better understanding on this cookbook pattern). This cookbook sits beside your application source code, hence two of the different project types sharing one build process.

Combining your environment cookbook and your application build (or application assembly build) will allow you to promote and deploy your application binaries and configuration files together. This is important as you do not want these two things to diverge i.e. applying the wrong version of configuration files to the wrong version of application in production due to manual human intervention.

An example structure of a Maven project that contains an environment cookbook:

src/
  main/
    java/
cookbook/
  attributes/
    default.rb
  metadata.rb
pom.xml

On top of all the build steps in a normal cookbook build outlined in the previous section, an environment cookbook build has additional build steps:

The application build. This step will of course produce the binaries that you would be deploying with Chef.
Updating cookbook cookbook/attributes/default.rb to point to your application version.

The attribute which Chef will use to determine which version of your application to be deployed is stored in cookbook/attributes/default.rb. Because they are kept together now in one repository, you can update the cookbook/attributes/default.rb file to point to the updated version declared in the pom.xml (after the pom.xml version is updated).

Release Candidate

Every successful cookbook build should produce a release candidate, ready to be run to your targeted environments. All the tests we have captured in the previous sections passed.

Here are the general steps that you should make after the build steps are completed to create a release candidate:

Generate cookbook documentation

At the time of writing, there are a lot of tools out there to document Chef cookbooks. Pick your own favourite, I’m using knife-cookbook-doc because it allows cookbook attributes to be documented close to the source code. Other tools rely on the maintenance of metadata.rb, which often be overlooked when your source code evolves.
Update metadata.rb

Update the source_url in your metadata.rb to point to your build tag URL, which will be soon created in the next steps.
Git commit: Commit those changes we made so far, including those done in the previous section.
Create a new build tag

Tag your commit with your current CI build number. These build tags will later be used for promotion process. The tag naming convention that we are using here is build/[build number] e.g. build/100, build/101, build/102, and so on.
Git push: Push your commit and build tag to your Git server.
Chef server upload and version freeze

Execute berks upload to upload and freeze your cookbook. It is crucial for the upload to happen last, because you don’t want anybody to use cookbooks that didn’t pass the tests right?
Clean up

Delete your old build tags based on your build retention policy. You might also want to clean cookbooks that are old enough and is not used by any environments. I personally have not done this as I have not seen the need of it yet, probably due to how good Chef Server’s Bookshelf is handling thousands of cookbook versions we have.

Chef Run

Once you have uploaded your cookbooks to Chef Server, you are ready to move on the next stage of your deployment pipeline. The Chef Run phase will cover your environment configuration, application configuration and application deployment. This phase must be automatically triggered when your environment cookbook build is completed successfully. No manual intervention should be involved in this step unless you are running the phase in production.

Using Acceptance Stage as an example target stage, here are the typical steps that will be executed:

Download Berksfile.lock from a build tag (or release tag)

In this step, you’ll need to download the Berksfile.lock that has been committed to your environment cookbook build tag. You will need to find the newest build tag and then hit your Git Server to download that file. Because this deployment job will be triggered by its upstream build job, you can pass down the build number and that will the latest build tag that you would want to pull from.

For example if Bitbucket Server used, you can hit the following API to download Berksfile.lock from build 100:
```
  https://bitbucket.example.com/projects/cd/repos/application/browse/cookbook?at=refs/tags/build/100&raw
```
Lock the Chef Environment cookbook constraints
```
  berks apply application_acceptance
```
Once the Berksfile.lock is downloaded, you would be able to excute berks apply to your acceptance environment without the full cookbook source code. This step is essential to ensure the consistency of your chef-client run in multiple machines.

Note that berks apply will remove all of the previous cookbook constraints before applying a new one. If you have multiple applications that are deployed to one machine, you must have an environment cookbook that combines these two applications.
Chef Run
```
  knife ssh "chef_environment:application_acceptance" "sudo chef-client"
```
This step, of course, is the place where everything chef related would happen. On the deployment part of your recipe, you would download the application from your binary repository (with the version specified in your environment cookbook) then deploy them.

The simplest execution of chef-client can be done from your CI server by excuting knife ssh. Knife SSH would normally be sufficient when you only have one node to be executed at.

Multiple nodes scenario would usually occur when your acceptance test environment is matured enough to match the production environments. When you have more than multiple nodes, I would recommend using push jobs. You will suffer from knife ssh bad handling of status reports when hitting multiple nodes i.e. it is hard to determine the node has deployment failure.

Smoke test

Your deployment will not complete without smoke tests execution. Smoke tests must be executed after every chef-client run you make. The smoke tests you write should run fast to verify that your deployment is successful, ideally in less than 1 minute. They also should not involve any application data modification.

You have a couple of options to execute those smoke tests: Serverspec via Rake, Inspec via its CLI, or Inspec via Chef Audit. I’m using Inspec via Chef Audit even when it is not intuitively something that Chef Audit is meant to be used for. This approach is good as you can use it in conjunction with push jobs hence eliminating the need of establishing an SSH connection from your CI/CD server to your nodes. You can enable chef audit mode in client.rb or a command line argument for chef-client.

Example smoke tests:

Test the environment

You can test various aspects of your environment here. Confirm that you can retrieve data from your database. ping or curl through every services that you are dependent on to make sure that there are up and making sure that the firewall is cleared.
Assert the deployment status

You can normally prompt web containers for the status of the deployment that you have just completed. For example in JBoss AS, you can query the status by using its cli tool and make sure that it doesn’t return FAILED status:
```
  jboss-cli.sh --connect command="deployment-info"
```
Assert the application version

If you are deploying a command line application, check that app --version returns the correct version. If you are deploying a web application, make sure that the version written in the footer or somewhere in the web page has the correct version by curl-ing. You get the gist.

Promotion to Production

This is the final stage of our deployment pipeline where the trigger of the phase is not automated. You will need to make sure that your application binaries, application configuration, environment configuration and deployment scripts to be tagged for reproducibility in the future. I will not be covering application binaries promotion in this post as it’s out of topic.

Based on the example deployment pipeline given above, this button will be the only manual step that will be pushed in your deployment pipeline. The promote to production button will typically be pressed after the acceptance tests and exploratory tests have passed.

If you have followed all of the previous chapters above, everything that we need will have a single entry point, which is our environment cookbook. Here are the typical steps that you would have:

Promote the environment cookbook

This step promotes our environment cookbook’s git build tag to become a release tag. Basically if you have we are to promote build number 100, we are to make release/100 git tag out of build/100 git tag. This should be achieved via REST API to avoid recloning your entire git repository.

This step is necessary because your build tags will be deleted by your cookbook build once they are old enough.
Promote all upstream cookbook dependencies

Think about a disaster scenario that might hit your Chef Server. Would you be able to recover all of the cookbook dependencies that is needed by your environment cookbook? If you are confident that your Chef Server is resilient enough, you can skip this step, otherwise you will need to promote all of your dependencies found in your environment cookbook’s Berksfile.lock. Failing to do so, you will not have any release tag for your upstream cookbooks.

To lookup the upstream cookbook build tags based on your Berksfile.lock, you can hit Chef Server and query their metadata. This can be done by using knife cookbook show which would return source_url from your metadata.rb (This information would only be returned if you have followed the Release Candidate section correctly of course):
```
  knife cookbook show library-cookbook-foobar 0.1.1
```
Once you have retrieved all of the upstream build tags, promote them the same way like how you have promoted the environment cookbook’s build tag.
